K5 Inter-Project Routing – Fully Automated Shared Services API Deployment

2017-01-18

In previous posts I have mentioned a K5 specific network feature called Inter-Project routing. As K5 is a public OpenStack based cloud rather than traditional private OpenStack cloud, Contract Owners (a.k.a. OpenStack domain admins) do not have permission to create shared networks by design. However many contract owners often find the need to share resources between projects and this is where K5 Inter-Project Routing comes in to play. Take the previous blog posts about Shared Services – these are all possible thanks to this feature.

Note: We are talking about routing between project subnets within the same availability zone and contract, cross availability zone links are also possible and have been discussed in previous posts.

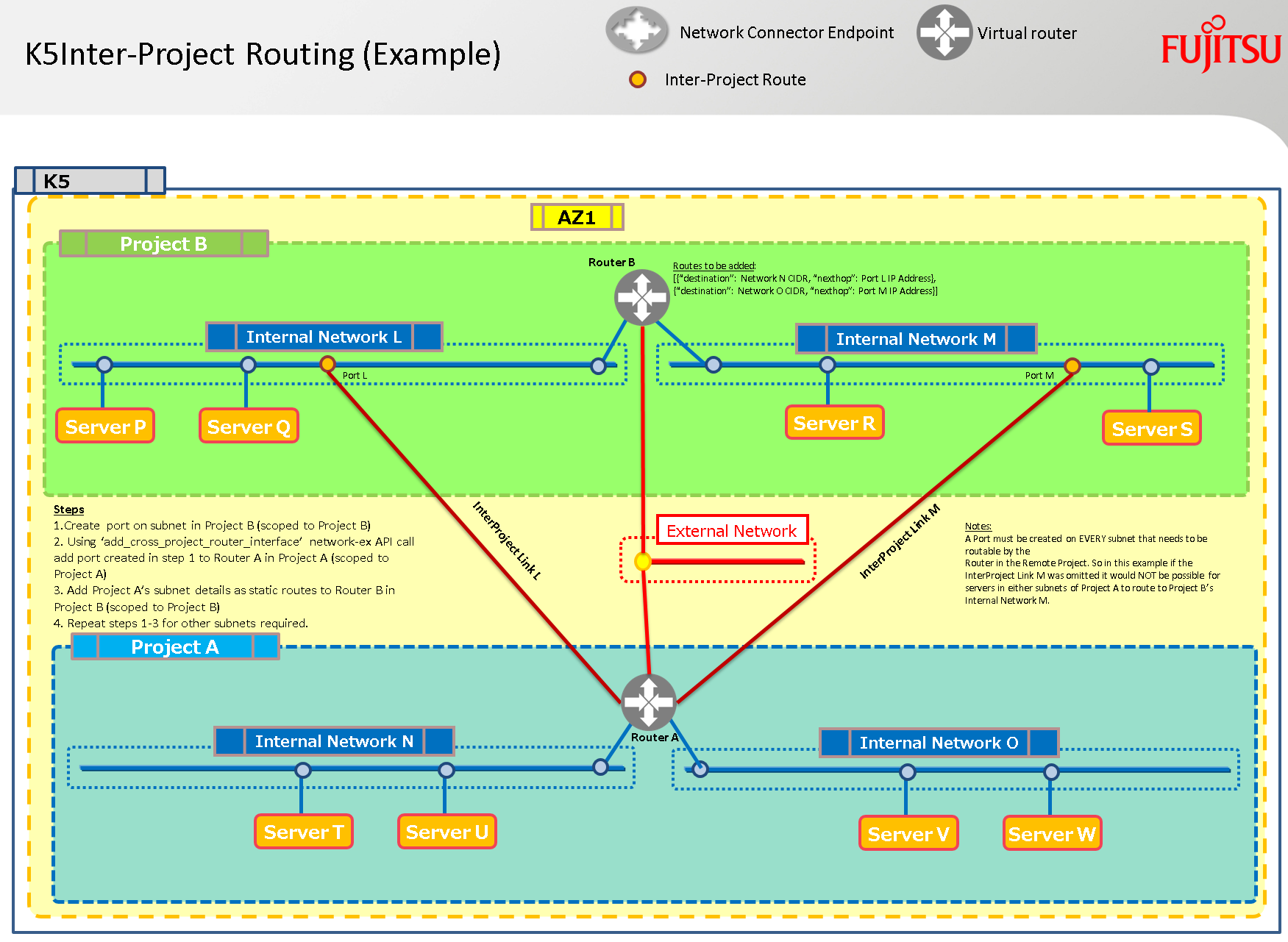

In order for the virtual machines (VMs) on the subnets in Project A above to be able to reach VMs on BOTH the subnets in Project B it is necessary to create an Inter-Project link to EACH of the subnets in Project B. That’s two inter-project links for the above scenario!

Steps required per Subnet

Get a k5 regional token scoped to Project B

This file contains hidden or bidirectional Unicode text that may be interpreted or compiled differently than what appears below. To review, open the file in an editor that reveals hidden Unicode characters.
Learn more about bidirectional Unicode characters

Show hidden characters


	def get_scoped_token(adminUser, adminPassword, contract, projectid, region):
	"""Summary – Get a regional project scoped token using a username and password

	Returns:
	Object: Regionally Scoped Project Token Object

	Args:
	adminUser (TYPE): username
	adminPassword (TYPE): password
	contract (TYPE): contract name
	projectid (TYPE): project id
	region (TYPE): region
	"""
	identityURL = 'https://identity.' + region + \
	'.cloud.global.fujitsu.com/v3/auth/tokens'

	try:
	response = requests.post(identityURL,
	headers={'Content-Type': 'application/json',
	'Accept': 'application/json'},
	json={"auth":
	{"identity":
	{"methods": ["password"], "password":
	{"user":
	{"domain":
	{"name": contract},
	"name": adminUser,
	"password": adminPassword
	}}},
	"scope":
	{"project":
	{"id": projectid
	}}}})

	return response
	except:
	return 'Regional Project Token Scoping Failure'

view raw
Get_Scoped_Token.py
hosted with ❤ by GitHub

Create a port on the subnet in Project B

Show hidden characters


	def create_port(k5token, name, netid, sg_id, az, region):

	portURL = 'https://networking.' + region + \
	'.cloud.global.fujitsu.com/v2.0/ports'
	try:
	response = requests.post(portURL,
	headers={
	'X-Auth-Token': k5token, 'Content-Type': 'application/json', 'Accept': 'application/json'},
	json={"port":
	{"network_id": netid,
	"name": name,
	"admin_state_up": True,
	"availability_zone": az,
	"security_groups":
	[sg_id]}})
	return response
	except:
	return ("\nUnexpected error:", sys.exc_info())

view raw
CreatePortonK5Subnet.py
hosted with ❤ by GitHub

Capture the port_id of the newly created port
ReScope your K5 token to Project A

Show hidden characters


	def get_rescoped_token(k5token, projectid, region):
	"""Get a regional project token – rescoped

	Returns:
	STRING: Regionally Scoped Project Token

	Args:
	k5token (TYPE): valid regional token
	projectid (TYPE): project id to scope to
	region (TYPE): k5 region
	"""
	identityURL = 'https://identity.' + region + \
	'.cloud.global.fujitsu.com/v3/auth/tokens'
	try:
	response = requests.post(identityURL,
	headers={'Content-Type': 'application/json',
	'Accept': 'application/json'},
	json={
	"auth": {
	"identity": {
	"methods": [
	"token"
	],
	"token": {
	"id": k5token
	}
	},
	"scope": {
	"project": {
	"id": projectid
	}
	}
	}
	})

	return response
	except:
	return 'Regional Project Rescoping Failure'

view raw
ReScope_K5_Token.py
hosted with ❤ by GitHub

Use the Fujitsu K5 Neutron enhanced API call, not available in upstream OpenStack, to make the inter-project connection. This API call allows the project administrator to add an interface from a subnet in a different project to the router in the admins project.

Show hidden characters


	def inter_project_connection_create(k5token, router, port, region):

	routerURL = 'https://networking-ex.' + region + \
	'.cloud.global.fujitsu.com/v2.0/routers/' + \
	router + '/add_cross_project_router_interface'
	try:
	response = requests.put(routerURL,
	headers={'X-Auth-Token': k5token,
	'Content-Type': 'application/json'},
	json={"port_id": port})
	return response
	except:
	return ("\nUnexpected error:", sys.exc_info())

view raw
AddInterPojectRoute.py
hosted with ❤ by GitHub

Rescope the K5 token to Project B (token rescope api call detailed earlier in the post)
Add the static return routes for the networks in Project A to the router in Project B (Note: if your design does not have a router in Project B you can add these routes to the subnets in Project B and reboot your servers to receive the new routing information)
Routes of the format [{“destination”: CIDR-1, “nexthop”: interProject-Port-IP},{“destination”: CIDR-2, “nexthop”: interProject-Port-IP} ]

Router Update

Show hidden characters


	def update_router_routes(k5token, routerid, routes, region):
	# e.g. routes = [{'destination': '192.168.10.0/24', 'nexthop': u'192.168.100.2'}, {'destination': '192.168.11.0/24', 'nexthop': u'192.168.100.2'}]
	try:
	routerURL = 'https://networking-ex.' + region + \
	'.cloud.global.fujitsu.com/v2.0/routers/' + routerid
	response = requests.put(routerURL,
	headers={'X-Auth-Token': k5token,
	'Content-Type': 'application/json'},
	json={"router": {"routes": routes}})
	return response
	except:
	return ("\nUnexpected error:", sys.exc_info())

view raw
K5-Update-Router-Routes.py
hosted with ❤ by GitHub

Alternative Subnet Update

Show hidden characters


	def add_static_route_to_subnet(k5token, subnetid, routes, region):
	# e.g. routes = = [{'destination': '192.168.101.0/24', 'nexthop': u'192.168.100.2'},{'destination': '192.168.100.0/24', 'nexthop': u'192.168.100.2'}]
	subnetURL = 'https://networking.' + region + \
	'.cloud.global.fujitsu.com/v2.0/subnets/' + subnetid
	try:
	response = requests.put(subnetURL,
	headers={'X-Auth-Token': k5token,
	'Content-Type': 'application/json'},
	json={"subnet": {"host_routes": routes}})
	return response
	except:
	return ("\nUnexpected error:", sys.exc_info())

view raw
K5-Subnet-Route-Update.py
hosted with ❤ by GitHub

And that’s all there is to it! You should now be able to route between your projects.

So where’s the automation I hear you think…

Well, I quickly ‘hacked’ together the following two python scripts for a customer demo. The python code is by no means efficient (a.k.a. DRY) but it is fit for the purpose of this tutorial:

Repo : https://github.com/allthingsclowd/K5-InterProject-Demo

K5-InterProject-Demo

Fully Automated Shared Service API Deployment on Fujitsu K5

Target – Fujitsu K5 IaaS Cloud Platform

Author: Graham Land
Date: 18/1/17
Twitter: @allthingsclowd
Github: https://github.com/allthingscloud
Blog: https://allthingscloud.eu

The python scripts in this repository can be used to create the shared services model below auto-magically 🙂

Steps:

Copy all these files to the same directory
Edit the k5contractsettingsv10.py to include your K5 contract details
Warning: Ensure to use two ‘disposable’ projects within your contract and add their names and ids to the above file.
Every resource in these projects will get purged so ensure you’re not sharing it with other users.
Launch the build_multi_project_demo.py script and relax! All the SSH keys, public ips, etc are returned to the console.
When finished playing with the routing you can use the purge_project.py to reset everything.

Happy Stacking!

view raw
MultiProjectAPIDemo.md
hosted with ❤ by GitHub

Happy Stacking!
