Fujitsu K5 IaaS API Example

2016-10-03

Fujitsu K5 IaaS API Example

# Here’s a very quick example of how to consume the K5 IaaS platform through its APIs.

This is a simple demo that details how to create a security group using API calls with Python 2.7.

Step 1: Get a Project-Scoped Token

First of all we need to get a project scoped token to authenticate the user which is achieved with the following function:

# get a project scoped auth token
def get_scoped_token(uname, upassword, uproject, udomain):
    identityURL = 'https://identity.uk-1.cloud.global.fujitsu.com/v3/auth/tokens'
    response = requests.post(identityURL,
                             headers={'Content-Type': 'application/json', 'Accept': 'application/json'},
                             json={"auth":
                                    {"identity":
                                      {"methods": ["password"], "password":
                                        {"user":
                                           {"domain":
                                              {"name": udomain}, "name": uname, "password": upassword}}},
                                              "scope": { "project": {"id": uproject}}}})
    return response.headers['X-Subject-Token']

The token returned in the header of the previous API call is used in all subsequent API calls – k5token.

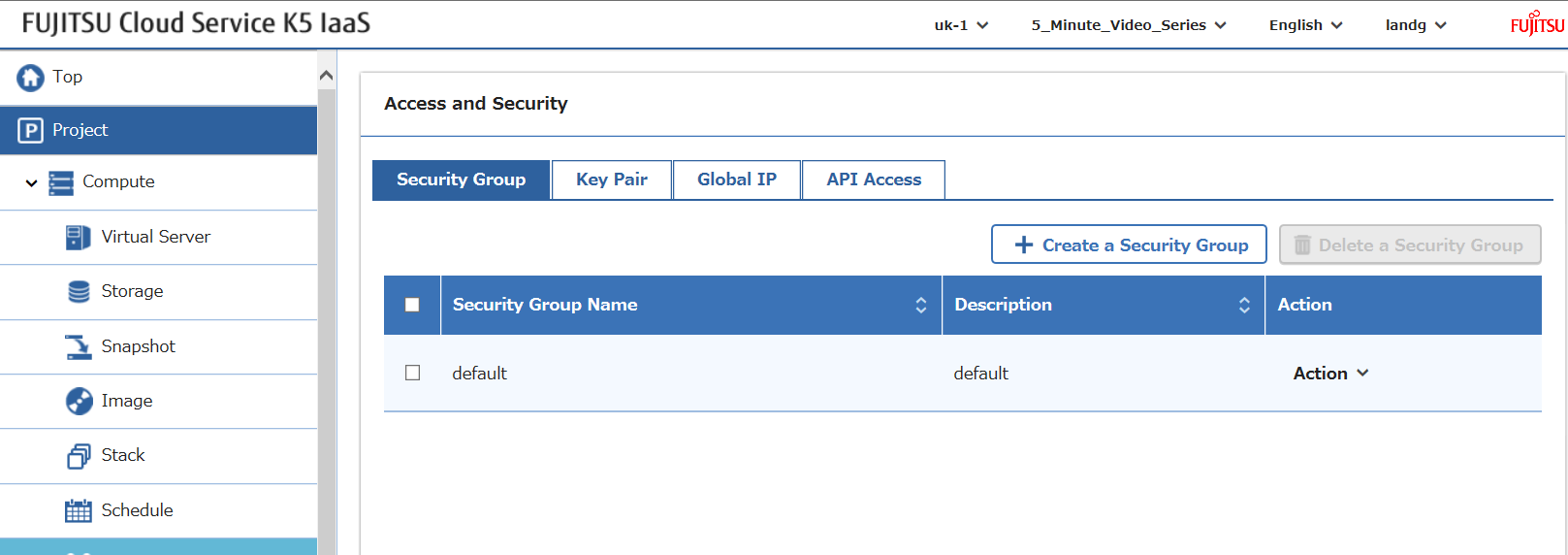

We can see below that currently we only have the default security group in this project:

sgbefore

Step 2: Create a Security Group

The next function invokes the security group creation API call:

# create security group
def create_security_group(k5token, sgname, sgdescription):
    sgURL = 'https://networking.uk-1.cloud.global.fujitsu.com/v2.0/security-groups'
    response = requests.post(sgURL,
                            headers={'X-Auth-Token': k5token, 'Content-Type': 'application/json', 'Accept': 'application/json'},
                            json={"security_group":
                                   {"name": sgname,
                                    "description": sgdescription
                                   }
                                 })
    return response.json()

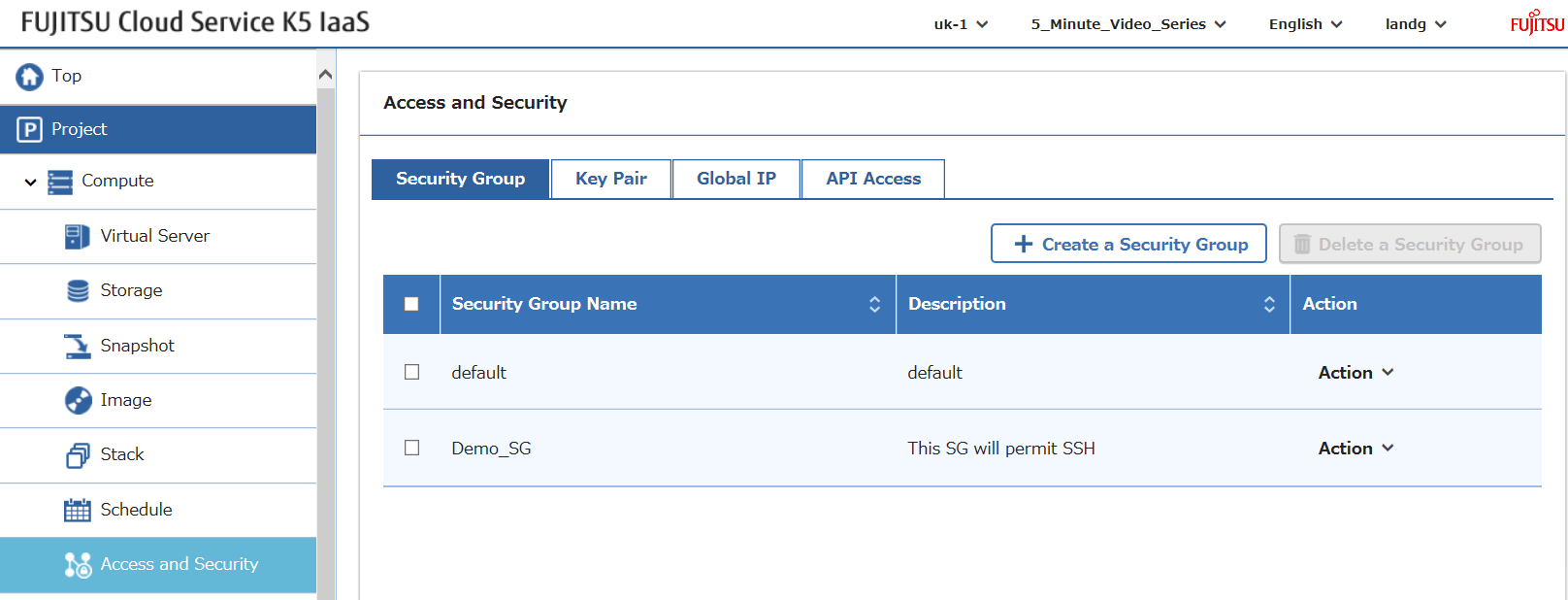

Which when called with the appropriate parameters results in the creation of a security group… surprise, surprise…

sgafter

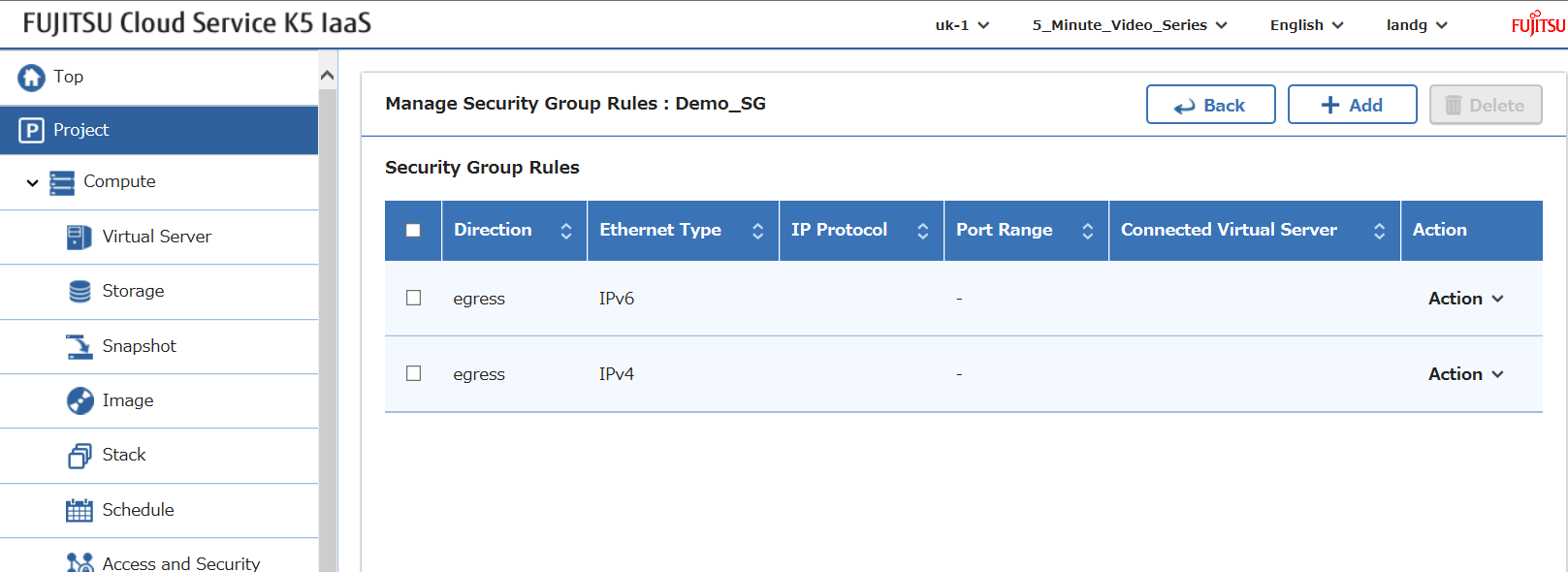

But there’s no inbound (ingress) rules…

rules_before

Step 3: Add Ingress Rules

Now all that’s needed is the rules that are to be applied to the security group. In this example I allow ssh access inbound with the following function:

def create_security_group_rule(k5token, direction, pmin, pmax, protocol, sgid):
    sgURL = 'https://networking.uk-1.cloud.global.fujitsu.com/v2.0/security-group-rules'
    response = requests.post(sgURL,
                            headers={'X-Auth-Token': k5token, 'Content-Type': 'application/json', 'Accept': 'application/json'},
                            json={"security_group_rule":
                                   {"direction": direction,
                                    "port_range_min": pmin,
                                    "ethertype": "IPv4",
                                    "port_range_max": pmax,
                                    "protocol": protocol,
                                    "security_group_id": sgid
                                    }
                                  })
    return response.json()

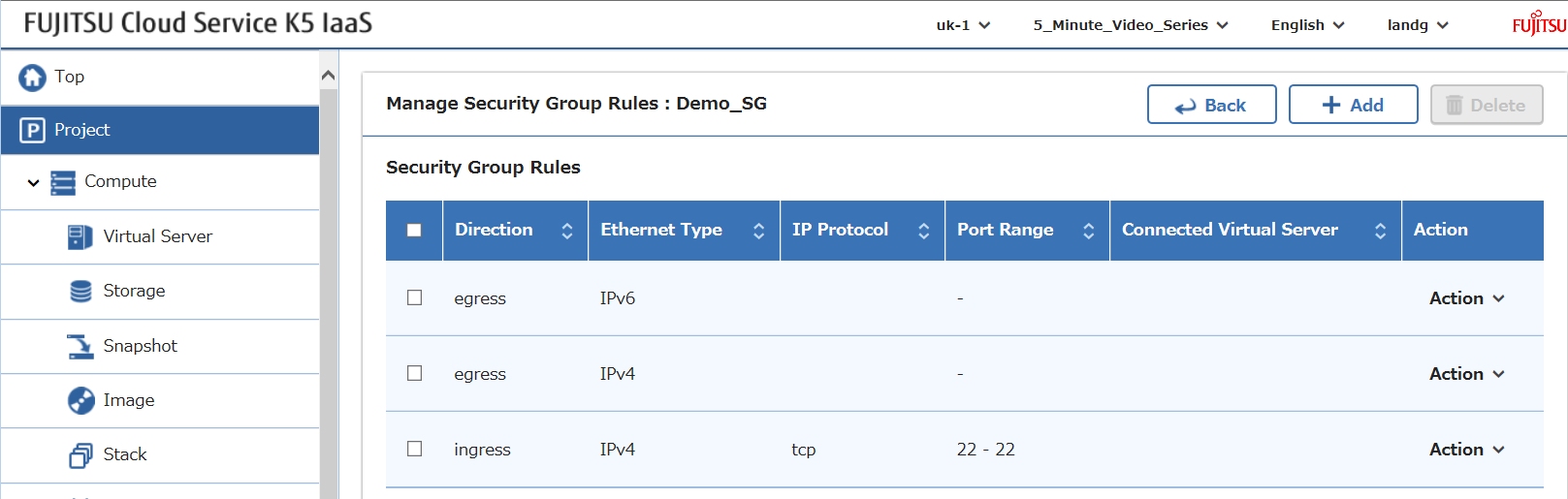

Which when called with the correct parameters will result in:

rules_after

Step 4: List Security Groups

Finally we can list all the security group details with this function:

def list_security_groups(k5token):
    sgURL = 'https://networking.uk-1.cloud.global.fujitsu.com/v2.0/security-groups'
    response = requests.get(sgURL,
                            headers={'X-Auth-Token': k5token, 'Content-Type': 'application/json', 'Accept': 'application/json'})
    return response.json()

Full Script

Putting it all together we get this script:

This file contains hidden or bidirectional Unicode text that may be interpreted or compiled differently than what appears below. To review, open the file in an editor that reveals hidden Unicode characters.
Learn more about bidirectional Unicode characters

Show hidden characters
# Author : Graham Land
# Date: 03/10/2016
#
# Purpose: Simple python 2.7 script to demonstrate how to use the Fujitsu K5 IaaS API
# The script creates a security group in a project
#
# blog: https://allthingscloud.eu
# twitter: @allthingsclowd
import requests
# get a project scoped auth token
def get_scoped_token(uname, upassword, uproject, udomain):
identityURL = 'https://identity.uk-1.cloud.global.fujitsu.com/v3/auth/tokens'
response = requests.post(identityURL,
headers={'Content-Type': 'application/json','Accept':'application/json'},
json={"auth":
{"identity":
{"methods":["password"],"password":
{"user":
{"domain":
{"name":udomain}, "name":uname, "password": upassword}}},
"scope": { "project": {"id":uproject}}}})
return response.headers['X-Subject-Token']
# create security group
def create_security_group(k5token, sgname, sgdescription):
sgURL = 'https://networking.uk-1.cloud.global.fujitsu.com/v2.0/security-groups'
response = requests.post(sgURL,
headers={'X-Auth-Token':k5token,'Content-Type': 'application/json','Accept':'application/json'},
json={"security_group":
{"name": sgname,
"description": sgdescription
}
})
return response.json()
def list_security_groups(k5token):
sgURL = 'https://networking.uk-1.cloud.global.fujitsu.com/v2.0/security-groups'
response = requests.get(sgURL,
headers={'X-Auth-Token':k5token,'Content-Type': 'application/json','Accept':'application/json'})
return response.json()
def create_security_group_rule(k5token, direction, pmin, pmax, protocol, sgid):
sgURL = 'https://networking.uk-1.cloud.global.fujitsu.com/v2.0/security-group-rules'
response = requests.post(sgURL,
headers={'X-Auth-Token':k5token,'Content-Type': 'application/json','Accept':'application/json'},
json={"security_group_rule":
{"direction": direction,
"port_range_min": pmin,
"ethertype": "IPv4",
"port_range_max": pmax,
"protocol": protocol,
"security_group_id": sgid
}
})
return response.json()
# Define contract parameters
adminUser = 'username'
adminPassword = 'password'
contract = 'contractname'
contractid = 'contractid'
myproject = 'myprojectid'
# Get a project scoped token
k5token = get_scoped_token(adminUser, adminPassword, myproject, contract)
# Display scoped token
print "\n\nToken : " + k5token
# Create a security group
result = create_security_group(k5token, "Demo_SG", "This SG will permit SSH")
# Display the result
print "\n\nResponse from Security Group Creation : \n" + str(result) + "\n"
# Capture security id from above result
security_group_id = result['security_group'].get('id')
# Create a security group rule and assign to security group
result = create_security_group_rule(k5token, 'ingress', '22', '22', 'tcp', security_group_id)
# Display the result
print "\n\nResponse from Security Group Rule Creation : \n" + str(result) + "\n"
# Get all security group details
result = list_security_groups(k5token)
# Display the result
print "\n\nList of All Security Group Details : \n" + str(result) + "\n\n"

view raw
K5_Security_Group_API_Demo.py
hosted with ❤ by GitHub

Script Output

This script produces the following output:

Token : 623310d961db4a30a8b8b3410277a951

Response from Security Group Creation :
{u'security_group': {u'id': u'5dca0da5-e474-40fd-bc96-c084c52fad94', u'tenant_id': u'6e970849a2504abb921702b9ff973e83', u'description': u'This SG will permit SSH', u'security_group_rules': [{u'remote_group_id': None, u'direction': u'egress', u'protocol': None, u'ethertype': u'IPv6', u'port_range_max': None, u'security_group_id': u'5dca0da5-e474-40fd-bc96-c084c52fad94', u'tenant_id': u'6e970849a2504abb921702b9ff973e83', u'port_range_min': None, u'remote_ip_prefix': None, u'id': u'951c64fb-3e91-4695-ad9c-8fa7d0159f83'}, {u'remote_group_id': None, u'direction': u'egress', u'protocol': None, u'ethertype': u'IPv4', u'port_range_max': None, u'security_group_id': u'5dca0da5-e474-40fd-bc96-c084c52fad94', u'tenant_id': u'6e970849a2504abb921702b9ff973e83', u'port_range_min': None, u'remote_ip_prefix': None, u'id': u'da060f8e-9e75-457b-aa17-06ce76e4336f'}], u'name': u'Demo_SG'}}

Response from Security Group Rule Creation :
{u'security_group_rule': {u'remote_group_id': None, u'direction': u'ingress', u'remote_ip_prefix': None, u'protocol': u'tcp', u'ethertype': u'IPv4', u'port_range_max': 22, u'security_group_id': u'5dca0da5-e474-40fd-bc96-c084c52fad94', u'port_range_min': 22, u'tenant_id': u'6e970849a2504abb921702b9ff973e83', u'id': u'a95a05ab-95e5-4e20-acc5-56b7b6a96915'}}

List of All Security Group Details :
{u'security_groups': [{u'id': u'7c885fa2-5221-4cb7-93e9-d137f51a730d', u'tenant_id': u'6e970849a2504abb921702b9ff973e83', u'description': u'default', u'security_group_rules': [{u'remote_group_id': u'7c885fa2-5221-4cb7-93e9-d137f51a730d', u'direction': u'ingress', u'protocol': None, u'ethertype': u'IPv6', u'port_range_max': None, u'security_group_id': u'7c885fa2-5221-4cb7-93e9-d137f51a730d', u'tenant_id': u'6e970849a2504abb921702b9ff973e83', u'port_range_min': None, u'remote_ip_prefix': None, u'id': u'd09fac54-2110-46c1-8340-36f25d47ed53'}, {u'remote_group_id': u'7c885fa2-5221-4cb7-93e9-d137f51a730d', u'direction': u'ingress', u'protocol': None, u'ethertype': u'IPv4', u'port_range_max': None, u'security_group_id': u'7c885fa2-5221-4cb7-93e9-d137f51a730d', u'tenant_id': u'6e970849a2504abb921702b9ff973e83', u'port_range_min': None, u'remote_ip_prefix': None, u'id': u'be4a06d0-5163-40a1-bb14-3db6ae317d8c'}, {u'remote_group_id': None, u'direction': u'egress', u'protocol': None, u'ethertype': u'IPv6', u'port_range_max': None, u'security_group_id': u'7c885fa2-5221-4cb7-93e9-d137f51a730d', u'tenant_id': u'6e970849a2504abb921702b9ff973e83', u'port_range_min': None, u'remote_ip_prefix': None, u'id': u'86b52434-d129-4237-a5ef-bf8f58cc8e47'}, {u'remote_group_id': None, u'direction': u'egress', u'protocol': None, u'ethertype': u'IPv4', u'port_range_max': None, u'security_group_id': u'7c885fa2-5221-4cb7-93e9-d137f51a730d', u'tenant_id': u'6e970849a2504abb921702b9ff973e83', u'port_range_min': None, u'remote_ip_prefix': None, u'id': u'97e7890d-03f8-4b3f-8d77-e3b105ecc3e0'}], u'name': u'default'}, {u'id': u'5dca0da5-e474-40fd-bc96-c084c52fad94', u'tenant_id': u'6e970849a2504abb921702b9ff973e83', u'description': u'This SG will permit SSH', u'security_group_rules': [{u'remote_group_id': None, u'direction': u'egress', u'protocol': None, u'ethertype': u'IPv6', u'port_range_max': None, u'security_group_id': u'5dca0da5-e474-40fd-bc96-c084c52fad94', u'tenant_id': u'6e970849a2504abb921702b9ff973e83', u'port_range_min': None, u'remote_ip_prefix': None, u'id': u'951c64fb-3e91-4695-ad9c-8fa7d0159f83'}, {u'remote_group_id': None, u'direction': u'egress', u'protocol': None, u'ethertype': u'IPv4', u'port_range_max': None, u'security_group_id': u'5dca0da5-e474-40fd-bc96-c084c52fad94', u'tenant_id': u'6e970849a2504abb921702b9ff973e83', u'port_range_min': None, u'remote_ip_prefix': None, u'id': u'da060f8e-9e75-457b-aa17-06ce76e4336f'}, {u'remote_group_id': None, u'direction': u'ingress', u'protocol': u'tcp', u'ethertype': u'IPv4', u'port_range_max': 22, u'security_group_id': u'5dca0da5-e474-40fd-bc96-c084c52fad94', u'tenant_id': u'6e970849a2504abb921702b9ff973e83', u'port_range_min': 22, u'remote_ip_prefix': None, u'id': u'a95a05ab-95e5-4e20-acc5-56b7b6a96915'}], u'name': u'Demo_SG'}]}

Happy Stacking!
