Install HOS Commercial Edition 1.01 using 8 physical servers – Notes

Server Inventory

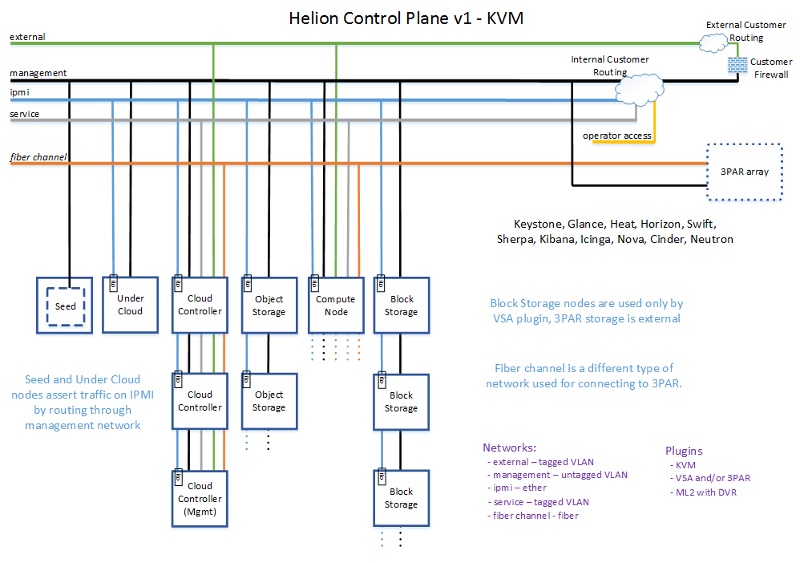

Networking

Networks

1. Management 172.16.120.0/24 VLAN 120 (Untagged – Native)
2. External (Public) 172.16.122.0/24 VLAN 122 (Tagged)
3. Service 172.16.121.0/24 VLAN 121 (Tagged)
4. IPMI (iLO) 172.30.0.0/24 (Untagged – Native)

Prerequisites

Assumption that the servers will have already been racked and stacked and wired in to the top of rack switches.

Hardware

• Is the base hardware supported – check it against the support matrix or going forward potentially using USB Discovery Tool? (Raid controllers, etc)

iLO

• This will need to be configured with an ip address, administrative username and password.

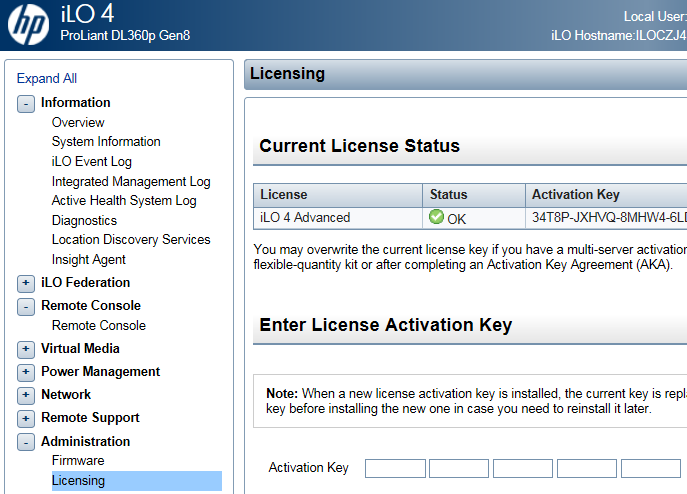

• Apply iLO license if advanced iLO functionality is required (e.g. Remote console access once OS has booted)

Bios settings

• Set RTC (real time clock) date and time correctly.
• Disable PXE boot on all nics EXCEPT the Physical Management nic (iLO required too)

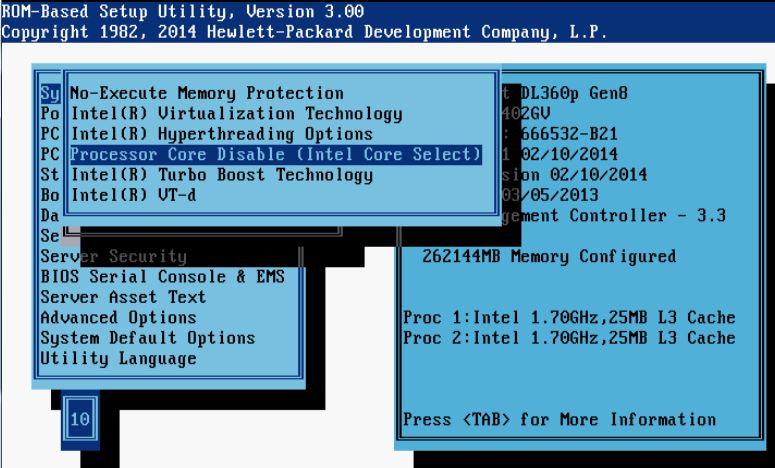

• Enable CPU Virtualisation Technology
• Set Automatic Restart to Off

Raid Controller

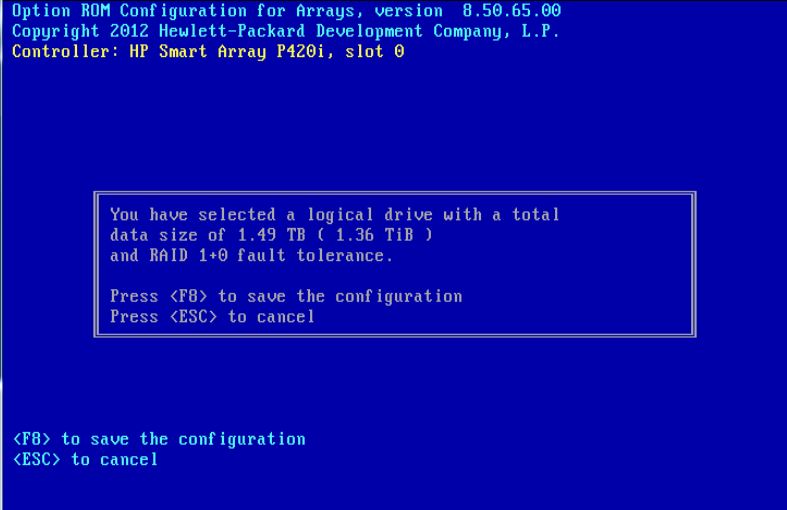

• Configure the local storage array to present a single raid 1/0 disk

[ modify to taste – OpenStack recommends the avoidance of raid controllers to reduce cost and complexity. However enterprises tend to prefer redundancy to avoid mundane failures impacting production. ]

Start of installation Process

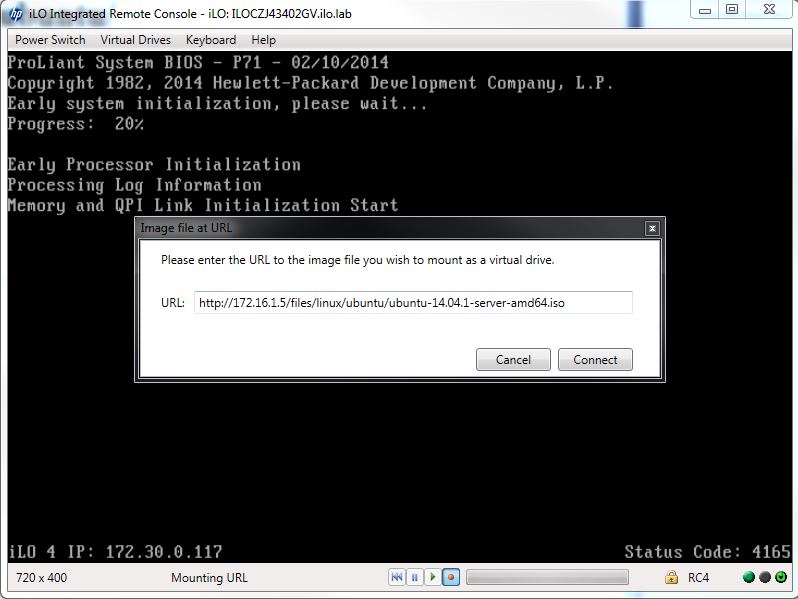

• Log on to seedhost iLO and mount the ubuntu14.04 server iso

• Install Ubuntu Server

[Note: specific local lab environment settings proxy for ubuntu package repo]

• modify or create the following conf file and add the proxy details – /etc/apt/apt.conf
• Acquire::http::Proxy “http://XX.XXX.133.239:3128“;
• save
• Refresh repo content

• sudo apt-get update

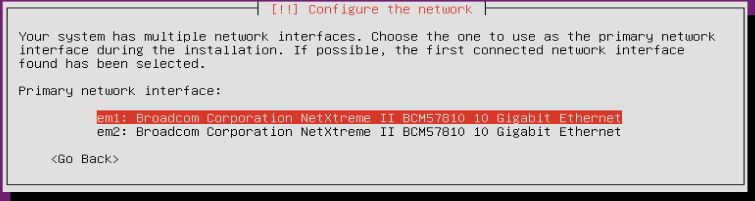

• Configure DNS through appropriate interface in/etc/network/interface

e.g.

The primary network interface

auto em1

iface em1 inet static

address 172.16.120.2

netmask 255.255.255.0

network 172.16.120.0

broadcast 172.16.120.255

gateway 172.16.120.1

# dns-* options are implemented by the resolvconf package, if installed

dns-nameservers 172.16.120.1

• Configure SSH [already installed during base installation]
• Get public Key

• ssh-keygen -t rsa -N “”

  helion@headnode03r03:~$ sudo su –

  [sudo] password for helion:

  root@headnode03r03:~# ssh-keygen -t rsa -N “”

  Generating public/private rsa key pair.

  Enter file in which to save the key (/root/.ssh/id_rsa):

  Created directory ‘/root/.ssh’.

  Your identification has been saved in /root/.ssh/id_rsa.

  Your public key has been saved in /root/.ssh/id_rsa.pub.

  The key fingerprint is:

  20:51:98:0d:48:ab:b8:fa:ca:3b:a3:25:03:ff:31:2b root@headnode03r03

  The key’s randomart image is:

  +–[ RSA 2048]—-+

  | …o*.          |

  |  ..o..          |

  |  . . .          |

  |..   . .         |

  |+       S        |

  |.o               |

  |+ o o            |

  |o*E. +           |

  |===.o            |

  +—————–+

  root@headnode03r03:~#

• Install prerequisite packages as documented here

• sudo apt–get install –y xrdp xfce4 libvirt–bin openvswitch–switch openvswitch–common python–libvirt qemu–kvm libssl–dev libffi–dev virt–manager chromium–browser

• Restart libvirt

• sudo /etc/init.d/libvirt–bin restart

• Install & Configure NTP server

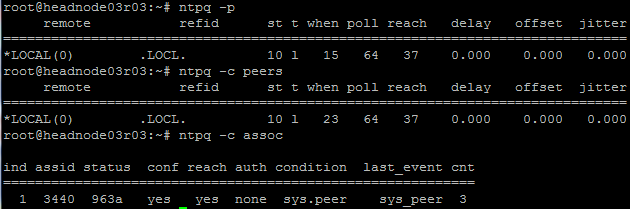

• sudo apt-get install ntp
• For PoC scenarios or where there is no access to external NTP use this seed host as the NTP server by modifying the /etc/ntp.conf with the following details

Specify one or more NTP servers.

Use servers from the NTP Pool Project. Approved by Ubuntu Technical Board

on 2011-02-08 (LP: #104525). See http://www.pool.ntp.org/join.html for

more information.

server 127.127.1.0

fudge 127.127.1.0 stratum 10

• service ntp restart

• Copy the HOS binaries and installation support tools from the http server in the lab.
• root@headnode03r03:~# mkdir work
• root@headnode03r03:~# cd work
• root@headnode03r03:~/work# wget http://172.16.1.5/files/helion/enterprise/HP_Helion_OpenStack_1.0.1.tgz

–2015-01-09 14:52:32–  http://172.16.1.5/files/helion/enterprise/HP_Helion_OpenStack_1.0.1.tgz

Connecting to 172.16.1.5:80… connected.

HTTP request sent, awaiting response… 200 OK

Length: 7440363802 (6.9G) [application/octet-stream]

Saving to: ‘HP_Helion_OpenStack_1.0.1.tgz’

100%[====================================>] 7,440,363,802  276MB/s   in 26s

2015-01-09 14:52:58 (277 MB/s) – ‘HP_Helion_OpenStack_1.0.1.tgz’ saved [7440363802/7440363802]

• Verify the installation media
• root@headnode03r03:~/work# md5sum HP_Helion_OpenStack_1.0.1.tgz

  b341aac3ff2f4c583f3ca22e6a2f1e1a  HP_Helion_OpenStack_1.0.1.tgz

• Download all support files from the tool directory in the labs [for large installations these tools will save a lot of time getting information from the iLOs]
• root@headnode03r03:~/work# wget -r -nd -nH –no-parent –reject “index.html*” http://172.16.1.5/files/helion/tools/

–2015-01-09 15:07:06–  http://172.16.1.5/files/helion/tools/

Connecting to 172.16.1.5:80… connected.

HTTP request sent, awaiting response… 200 OK

Length: unspecified [text/html]

Saving to: ‘index.html’

[ <=>                                   ] 414         –.-K/s   in 0s

2015-01-09 15:07:06 (19.8 MB/s) – ‘index.html’ saved [414]

Loading robots.txt; please ignore errors.

–2015-01-09 15:07:06–  http://172.16.1.5/robots.txt

Reusing existing connection to 172.16.1.5:80.

HTTP request sent, awaiting response… 404 Not Found

2015-01-09 15:07:06 ERROR 404: Not Found.

Removing index.html since it should be rejected.

–2015-01-09 15:07:06–  http://172.16.1.5/files/helion/tools/Create-Baremetal.py

Reusing existing connection to 172.16.1.5:80.

HTTP request sent, awaiting response… 200 OK

Length: 4829 (4.7K) [application/octet-stream]

Saving to: ‘Create-Baremetal.py’

100%[======================================>] 4,829       –.-K/s   in 0s

2015-01-09 15:07:06 (280 MB/s) – ‘Create-Baremetal.py’ saved [4829/4829]

–2015-01-09 15:07:06–  http://172.16.1.5/files/helion/tools/python-hpilo-2.8.tar

Reusing existing connection to 172.16.1.5:80.

HTTP request sent, awaiting response… 200 OK

Length: 204800 (200K) [application/octet-stream]

Saving to: ‘python-hpilo-2.8.tar’

100%[======================================>] 204,800     –.-K/s   in 0.001s

2015-01-09 15:07:06 (207 MB/s) – ‘python-hpilo-2.8.tar’ saved [204800/204800]

FINISHED –2015-01-09 15:07:06–

Total wall clock time: 0.006s

Downloaded: 3 files, 205K in 0.001s (205 MB/s)

root@headnode03r03:~/work# ls

Create-Baremetal.py  HP_Helion_OpenStack_1.0.1.tgz  python-hpilo-2.8.tar

• Install the python HP iLO libraries
• root@headnode03r03:~/work# tar -xvf python-hpilo-2.8.tar
• root@headnode03r03:~/work# cd python-hpilo-2.8/
• root@headnode03r03:~/work/python-hpilo-2.8# python3 setup.py install
• Extract the HOS binaries
• root@headnode03r03:~/work# tar zxvf /root/work/HP_Helion_OpenStack_1.0.1.tgz

[Update Note:I had to copy everything back to the root directory as there were issues with the installation script when I placed the files in the work directory]

• Backup and then modify the default installation environment variables file /root/work/tripleo/config/kvm-custom-ips.json
• root@headnode03r03:~/work# vi /root/work/tripleo/configs/kvm-custom-ips.json

• root@headnode03r03:~/work# cat /root/work/tripleo/configs/kvm-custom-ips.json

  {

  “cloud_type”: “KVM”,

  “vsa_scale”: 0,

  “vsa_ao_scale”: 0,

  “so_swift_storage_scale”: 0,

  “so_swift_proxy_scale”: 0,

  “compute_scale”: 1,

  “bridge_interface”: “em1”,

  “virtual_interface”: “eth0”,

  “fixed_range_cidr”: “172.0.100.0/24”,

  “control_virtual_router_id”: “71”,

  “baremetal”: {

  “network_seed_ip”: “172.16.120.3”,

  “network_cidr”: “172.16.120.0/24”,

  “network_gateway”: “172.16.120.1”,

  “network_seed_range_start”: “172.16.120.4”,

  “network_seed_range_end”: “172.16.120.14”,

  “network_undercloud_range_start”: “172.16.120.20”,

  “network_undercloud_range_end”: “172.16.120.40”

  },

  “neutron”: {

  “public_interface_raw_device”: “eth0”,

  “overcloud_public_interface”: “vlan122”,

  “undercloud_public_interface”: “eth0”

  },

  “ntp”: {

  “overcloud_server”: “172.16.120.2”,

  “undercloud_server”: “172.16.120.2”

  },

  “floating_ip”: {

  “start”: “172.16.122.100”,

  “end”: “172.16.122.150”,

  “cidr”: “172.16.122.0/24”

  },

  “svc”: {

  “interface”: “vlan121”,

  “interface_default_route”: “172.16.121.1”,

  “allocate_start”: “172.16.121.100”,

  “allocate_end”: “172.16.121.200”,

  “allocate_cidr”: “172.16.121.0/24”,

  “overcloud_bridge_mappings”: “svcnet1:br-svc”,

  “overcloud_flat_networks”: “svcnet1”,

  “customer_router_ip”: “172.16.121.1”

  },

  “codn”: {

  “undercloud_http_proxy”: “http://16.209.133.239:3128&#8221;,

  “undercloud_https_proxy”: “http://16.209.133.239:3128&#8221;,

  “overcloud_http_proxy”: “http://16.209.133.239:3128&#8221;,

  “overcloud_https_proxy”: “http://16.209.133.239:3128&#8221;

  }

  }

• Now create the baremetal.csv file using the tools downloaded earlier. [Note : Don’t include the seed host in this file.]

• The Create-Baremetal.py file requiresa CSV file with the ilo details
• root@headnode03r03:~/work/python-hpilo-2.8# cd ..
• root@headnode03r03:~/work# python3 Create-Baremetal.py

  usage: Create-Baremetal.py [-h] [-f FILE]

  Create-Baremetal.py: error: argument -f/–file: can’t open ‘Helion-iLO.csv’: [Errno 2] No such file or directory: ‘Helion-iLO.csv’

• Create the CSV file in the following format

help=’CSV with iLO IP, username, password’, default=’Helion-iLO.csv’

• For example:

  root@headnode03r03:~/work# vi Helion-iLO.csv

  root@headnode03r03:~/work# cat Helion-iLO.csv

  172.30.0.117,Administrator,xxxx [Note : Remove Seed Host]

  172.30.0.118,Administrator,xxxx

  172.30.0.119,Administrator,xxxx

  172.30.0.120,Administrator,xxxx

  172.30.0.121,Administrator,xxxx

  172.30.0.122,Administrator,xxxx

  172.30.0.123,Administrator,xxxx

  172.30.0.124,Administrator,xxxx

• Create the baremetal.csv file

• root@headnode03r03:~/work# python3 Create-Baremetal.py

  Creating baremetal.csv in the current folder…

  Gathering information for node: 172.30.0.117 PXE-Mac:9c:b6:54:9b:e4:68, 262144MB, 20 Cores, 1116GiB

  Gathering information for node: 172.30.0.118 PXE-Mac:9c:b6:54:9b:94:48, 262144MB, 20 Cores, 1116GiB

  Gathering information for node: 172.30.0.119 PXE-Mac:9c:b6:54:9b:b6:98, 262144MB, 20 Cores, 1116GiB

  Gathering information for node: 172.30.0.120 PXE-Mac:9c:b6:54:9b:76:90, 262144MB, 20 Cores, 1116GiB

  Gathering information for node: 172.30.0.121 PXE-Mac:9c:b6:54:9b:f6:78, 262144MB, 20 Cores, 1116GiB

  Gathering information for node: 172.30.0.122 PXE-Mac:f0:92:1c:05:49:30, 262144MB, 20 Cores, 1116GiB

  Gathering information for node: 172.30.0.123 PXE-Mac:9c:b6:54:9b:64:00, 262144MB, 20 Cores, 1116GiB

  Gathering information for node: 172.30.0.124 PXE-Mac:9c:b6:54:9b:d6:78, 262144MB, 20 Cores, 1116GiB

  root@headnode03r03:~/work# cat baremetal.csv

  9c:b6:54:9b:94:48,Administrator,xxxx,172.30.0.118,20,262144,1116

  9c:b6:54:9b:b6:98,Administrator,xxxx,172.30.0.119,20,262144,1116

  9c:b6:54:9b:76:90,Administrator,xxxx,172.30.0.120,20,262144,1116

  9c:b6:54:9b:f6:78,Administrator,xxxx,172.30.0.121,20,262144,1116

  f0:92:1c:05:49:30,Administrator,xxxx,172.30.0.122,20,262144,1116

  9c:b6:54:9b:64:00,Administrator,xxxx,172.30.0.123,20,262144,1116

  9c:b6:54:9b:d6:78,Administrator,xxxx,172.30.0.124,20,262144,1116

• Configure the http proxy on the seed host

• root@headnode03r03:~/work# export http_proxy=http://16.209.133.239:3128
• root@headnode03r03:~/work# export https_proxy=http://16.209.133.239:3128
• root@headnode03r03:~/work# export no_proxy=localhost,127.0.0.1,172.12.120.2
• Execute the kvm-custom-ips
• root@headnode03r03:~# bash
• root@headnode03r03:~# source tripleo/tripleo-incubator/scripts/hp_ced_load_confi g.sh tripleo/configs/kvm-custom-ips.json

  The configuration specified by tripleo/configs/kvm-custom-ips.json is loaded and  ready for installation

• Build the seed VM
• root@headnode03r03:~# bash -x /root/tripleo/tripleo-incubator/scripts/hp_ced_host_manager.sh –create-seed |& tee seedinstall.log

Seed Complete – now for undercloud and over cloud

• Copy the previously created baremetal.csv to the newly created seed vm

• scp baremetal.csv root@172.16.120.3:/root

• Log in to the newly created seed vm

• ssh root@172.16.120.3

• Check both the baremetal file and the kvm-custom-ips.json are correct

• Execute the kvm-custom-ips.json file

• source tripleo/tripleo-incubator/scripts/hp_ced_load_config.sh tripleo/configs/kvm-custom-ips.json

• Install the undercloud and overcloud

• bash -x /root/tripleo/tripleo-incubator/scripts/hp_ced_installer.sh |& tee cloud_install.log
• And that should give you –

Coming soon article for verifying installation

Errors

Problem :

=======

root@headnode03r03:~# source /root/work/tripleo/tripleo-incubator/scripts/hp_ced_load_config.sh /root/work/tripleo/configs/kvm-custom-ips.json

Error: Script has no access to write variables to environment.

You must run this using one of the following forms:

  source hp_ced_load_config.sh <config.json>

or

  . hp_ced_load_config.sh <config.json>

Solved : Ensure you’re in a bash shell - run bash and then run the command

=======================================================

Problem :

=======

root@headnode03r03:~# source /root/work/tripleo/tripleo-incubator/scripts/hp_ced_load_config.sh /root/work/tripleo/configs/kvm-custom-ips.json

Error: [Errno 2] No such file or directory: '/root/tripleo/hp_passthrough/overcloud_pre_installer.json'

Solved : Ensure the media is installed in the correct installed in the /root/ directory. Early documentation requests that the media is expanded into a /root/work/ directory. This is no longer correct.

root@headnode03r03:~# mv work/tripleo/ /root/

=============================================================

Problem :

=======

+ hp_ced_validate_ip validate -a 172.16.120.3 -n 172.16.120.0/24 -p down

Valid IP address: 172.16.120.3

Address (172.16.120.3) on network (172.16.120.0/24)

ERROR: Found pingable IP, cannot continue

Pingable IP: 172.16.120.3

Solved : All servers not switched off - ensure lab is reset correctly before starting

=============================================================

Problem :

=======

+ die 'Error: BRIDGE_INTERFACE:eth0 has no assigned IP address'

+ echo Error: BRIDGE_INTERFACE:eth0 has no assigned IP address

Error: BRIDGE_INTERFACE:eth0 has no assigned IP address

+ exit 1

Solved : The seed host was not reset cleanly after first attempt - need to remove the baremetal bridge - brbm and place ip address back on em1…

Deleted brbm

Added IP back to em1

Added default gw

=====================================================================

Originally published on allthingscloud.eu (2015-01-14).
