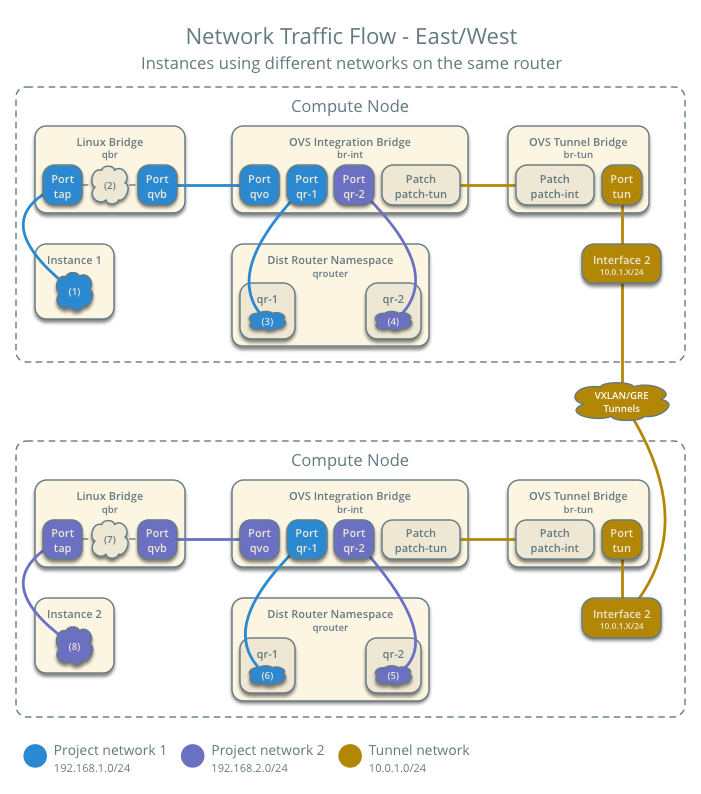

HOS East-West DVR Traffic Flow Verification (4 of 4)
2015-11-25
Create a second private network
neutron net-create HPinternal2
root@overcloud-ce-controller-controller0-dlmy4f5tbc5d:~# neutron net-create HPinternal2
Created a new network:
+---------------------------+--------------------------------------+
| Field | Value |
+---------------------------+--------------------------------------+
| admin_state_up | True |
| id | d9d745ba-2d78-4a5b-9fe1-be45f916c286 |
| name | HPinternal2 |
| provider:network_type | vxlan |
| provider:physical_network | |
| provider:segmentation_id | 1007 |
| router:external | False |
| shared | False |
| status | ACTIVE |
| subnets | |
| tenant_id | 3935f5d20d2848b69324bb8bd75a0389 |
+---------------------------+--------------------------------------+
Create the subnet for this second network
neutron subnet-create –name subnet-HPinternal2 HPinternal2 12.0.0.0/24
root@overcloud-ce-controller-controller0-dlmy4f5tbc5d:~# neutron subnet-create --name subnet-HPinternal2 HPinternal2 12.0.0.0/24
Created a new subnet:
+-------------------+--------------------------------------------+
| Field | Value |
+-------------------+--------------------------------------------+
| allocation_pools | {"start": "12.0.0.2", "end": "12.0.0.254"} |
| cidr | 12.0.0.0/24 |
| dns_nameservers | |
| enable_dhcp | True |
| gateway_ip | 12.0.0.1 |
| host_routes | |
| id | 704f6916-e27a-49a6-8655-3b01f0de1f92 |
| ip_version | 4 |
| ipv6_address_mode | |
| ipv6_ra_mode | |
| name | subnet-HPinternal2 |
| network_id | d9d745ba-2d78-4a5b-9fe1-be45f916c286 |
| tenant_id | 3935f5d20d2848b69324bb8bd75a0389 |
+-------------------+--------------------------------------------+
Connect the subnet to the new router
neutron router-interface-add HProuter subnet-HPinternal2
root@overcloud-ce-controller-controller0-dlmy4f5tbc5d:~# neutron router-interface-add HProuter subnet-HPinternal2
Added interface 249aca1f-c62d-4ca8-bf07-2926d376f145 to router HProuter.
Booting a new instance on this 2nd tenant network
neutron net-list
root@overcloud-ce-controller-controller0-dlmy4f5tbc5d:~# neutron net-list
+--------------------------------------+-------------+-------------------------------------------------------+
| id | name | subnets |
+--------------------------------------+-------------+-------------------------------------------------------+
| 35510045-decf-491e-9990-87a3f77f0284 | ext-net | bfaacf82-7a4f-4e0c-aab9-94f705dc2c11 10.254.27.0/24 |
| 4259ab26-a1c4-427e-a7e0-b941368c4e23 | default-net | d20f33e0-82f1-4ce1-80cf-17a27c86d11c 172.0.100.0/24 |
| 73ff3b91-77ad-4ef4-aa67-a99a5ef57650 | demo_net1 | 4a20b788-da40-48a0-b459-5034d2831adf 192.168.111.0/24 |
| a493f23f-3646-49c5-a342-82c0ac7601f6 | lab2-net | 75542425-b437-4433-a9d8-3009527e1435 192.168.1.0/24 |
| d2ad4daa-d004-40bd-afa8-b7e19b8dde67 | HPinternal | 28d80588-9bf1-415e-a1f3-b08d95d5bf14 10.0.0.0/24 |
| d9d745ba-2d78-4a5b-9fe1-be45f916c286 | HPinternal2 | 704f6916-e27a-49a6-8655-3b01f0de1f92 12.0.0.0/24 |
| e70da3b0-ad8d-4ec0-9dd7-40ba563d2416 | SVC | 57929850-9c6a-4917-a8a4-61c033d72705 10.254.26.0/24 |
| e99f2cdd-eb42-4466-9b17-7cb85636c013 | lab1-net1 | 60b9efc0-081f-45fd-b06c-0ce88fc04d50 192.168.113.0/24 |
+--------------------------------------+-------------+-------------------------------------------------------+
nova boot –flavor m1.tiny –image debian-wheezy-amd64-20140929-disk –nic net-id=d9d745ba-2d78-4a5b-9fe1-be45f916c286 –security-group default –key-name pilot-key HPdemo-instance2
root@overcloud-ce-controller-controller0-dlmy4f5tbc5d:~# nova boot --flavor m1.tiny --image debian-wheezy-amd64-20140929-disk --nic net-id=d9d745ba-2d78-4a5b-9fe1-be45f916c286 --security-group default --key-name pilot-key HPdemo-instance2
+--------------------------------------+--------------------------------------------------------------------------+
| Property | Value |
+--------------------------------------+--------------------------------------------------------------------------+
| OS-EXT-AZ:availability_zone | nova |
| OS-EXT-SRV-ATTR:host | - |
| OS-EXT-SRV-ATTR:hypervisor_hostname | - |
| OS-EXT-SRV-ATTR:instance_name | instance-00000087 |
| OS-EXT-STS:power_state | 0 |
| OS-EXT-STS:task_state | scheduling |
| OS-EXT-STS:vm_state | building |
| OS-SRV-USG:launched_at | - |
| OS-SRV-USG:terminated_at | - |
| accessIPv4 | |
| accessIPv6 | |
| adminPass | zq6gg3n6T6cH |
| config_drive | |
| created | 2015-11-23T10:53:21Z |
| flavor | m1.tiny (1) |
| hostId | |
| id | 2bf420ee-e8ec-4a3c-8efc-0a8101f71b09 |
| image | debian-wheezy-amd64-20140929-disk (1cb50c3f-4606-4e94-b85f-1d323f6a70fd) |
| key_name | pilot-key |
| metadata | {} |
| name | HPdemo-instance2 |
| os-extended-volumes:volumes_attached | [] |
| progress | 0 |
| security_groups | default |
| status | BUILD |
| tenant_id | 3935f5d20d2848b69324bb8bd75a0389 |
| updated | 2015-11-23T10:53:22Z |
| user_id | 86fe8295656d495db6b06c57274adbf2 |
+--------------------------------------+--------------------------------------------------------------------------+
nova list –fields name,status,Networks,OS-EXT-SRV-ATTR:host
root@overcloud-ce-controller-controller0-dlmy4f5tbc5d:~# nova list --fields name,status,Networks,OS-EXT-SRV-ATTR:host
+--------------------------------------+------------------+--------+-----------------------------------+-----------------------------------------------------+
| ID | Name | Status | Networks | OS-EXT-SRV-ATTR: Host |
+--------------------------------------+------------------+--------+-----------------------------------+-----------------------------------------------------+
| 374b3e1c-0e89-4481-b9dd-a9a420a498e1 | HPdemo-instance1 | ACTIVE | HPinternal=10.0.0.5, 10.254.27.48 | overcloud-ce-novacompute1-novacompute1-tpodwp2ljbhw |
| 2bf420ee-e8ec-4a3c-8efc-0a8101f71b09 | HPdemo-instance2 | BUILD | HPinternal2=12.0.0.3 | overcloud-ce-novacompute0-novacompute0-cnfiwerfvbht |
+--------------------------------------+------------------+--------+-----------------------------------+-----------------------------------------------------+
Pinging network 10.0.0.0/24 to 12.0.0.0/24
debian@hpdemo-instance1:~$ ping 12.0.0.3
PING 12.0.0.3 (12.0.0.3) 56(84) bytes of data.
64 bytes from 12.0.0.3: icmp_req=1 ttl=63 time=1.98 ms
64 bytes from 12.0.0.3: icmp_req=2 ttl=63 time=0.984 ms
64 bytes from 12.0.0.3: icmp_req=3 ttl=63 time=0.938 ms
^C
--- 12.0.0.3 ping statistics ---
3 packets transmitted, 3 received, 0% packet loss, time 2002ms
rtt min/avg/max/mdev = 0.938/1.301/1.981/0.481 ms
Compute0
ip netns
root@overcloud-ce-novacompute0-novacompute0-cnfiwerfvbht:~# ip netns
qrouter-8c8a0159-2b37-4fae-93e9-b302a9d59573
qrouter-6903d563-80f4-40b0-ba77-8774a915a323
qrouter-8497d1cb-c2fa-46a5-9e42-1bfceb810204
fip-35510045-decf-491e-9990-87a3f77f0284
qrouter-64b856f2-00a7-4e2f-8abd-aa34ab454c34
ip netns exec qrouter-8c8a0159-2b37-4fae-93e9-b302a9d59573 ip a | grep "inet "
root@overcloud-ce-novacompute0-novacompute0-cnfiwerfvbht:~# ip netns exec qrouter-8c8a0159-2b37-4fae-93e9-b302a9d59573 ip a | grep "inet "
inet 127.0.0.1/8 scope host lo
inet 10.0.0.1/24 brd 10.0.0.255 scope global qr-2202c460-bb
inet 12.0.0.1/24 brd 12.0.0.255 scope global qr-249aca1f-c6
Compute1
ip netns
root@overcloud-ce-novacompute1-novacompute1-tpodwp2ljbhw:~# ip netns
fip-35510045-decf-491e-9990-87a3f77f0284
qrouter-8c8a0159-2b37-4fae-93e9-b302a9d59573
qrouter-6903d563-80f4-40b0-ba77-8774a915a323
qrouter-8497d1cb-c2fa-46a5-9e42-1bfceb810204
qrouter-64b856f2-00a7-4e2f-8abd-aa34ab454c34
ip netns exec qrouter-8c8a0159-2b37-4fae-93e9-b302a9d59573 ip a | grep "inet "
root@overcloud-ce-novacompute1-novacompute1-tpodwp2ljbhw:~# ip netns exec qrouter-8c8a0159-2b37-4fae-93e9-b302a9d59573 ip a | grep "inet "
inet 127.0.0.1/8 scope host lo
inet 169.254.31.28/31 scope global rfp-8c8a0159-2
inet 10.254.27.48/32 brd 10.254.27.48 scope global rfp-8c8a0159-2
inet 10.0.0.1/24 brd 10.0.0.255 scope global qr-2202c460-bb
inet 12.0.0.1/24 brd 12.0.0.255 scope global qr-249aca1f-c6
Originally published on allthingscloud.eu (2015-11-25).
